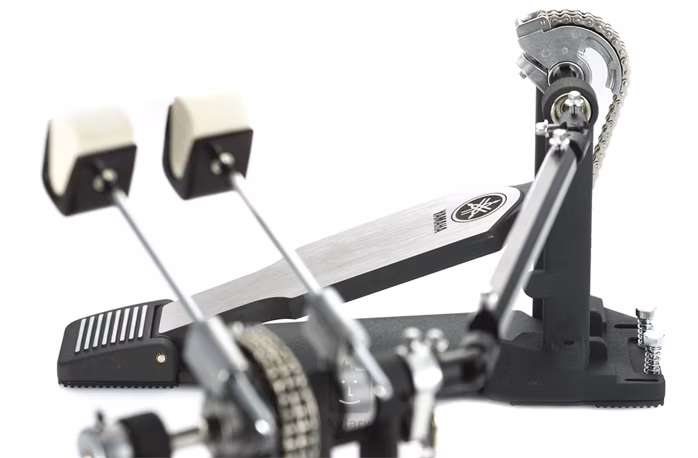

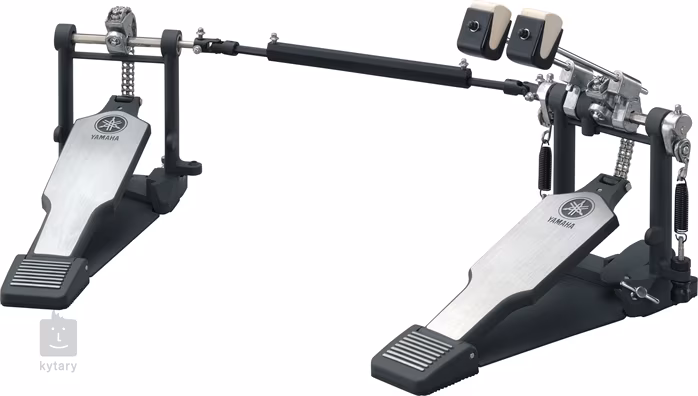

YAMAHA DFP9500C

Double foot pedal version of FP9500C

• Main features are same as FP9500C except below

• New Designed Spike on Slave Pedal

• Single bolt with bolt holding plate on Universal joint

2-Way Beater

This convertible beater incorporates two types of beaters into a single unit. One side is a normal felt type while the other is made of plastic that delivers a feeling close to wood.

Beater Shaft Rocker

The teardrop shaped shaft hole holds the shaft securely. The shaft's flat surface keeps the 2-way beater from swiveling while playing.

Beater Angle Adjustment

Loosening the adjustment screw lets you freely adjust the beater angle along with the footboard angle.

Spring Tension Adjustment with Self Lock

One hand spring tension adjustment is easy. A lock bolt secures the setting to prevent loosening during play.

Simple Hoop Clamp Mechanism

A wing bolt firmly tightens the clamp for secure attachment. It also allows the clamp to accommodate different hoop thicknesses.

Footboard Angle Adjustment

The pedal angle can be set freely to any angle without affecting beater angle. This lets you set the pedal angle you want when the pedal is not pressed. A tuning key is used to make the adjustment, which also lets you align pedal height with your sub, and hi-hat pedals.

Spring Roller with Built-in Bearings

Precision bearings deliver smooth, natural pedal action.

Base Frame Tie Rods

Rubber coated tie rod ends prevent the footboard and base frame from becoming disconnected.

Smooth Moving Universal Joint</h3

A universal joint on the rocker shaft provides angular flexibility for smoother movement.
